1x2 DWDM（100G/200G）

产品概述：

It has features such as Low Insertion Loss&High Isolation, High Stability and Reliability, and is commonly used in DWDM systems, Metro/Access Networks, Metro/Access Networks, etc.

关键词： 1x2 DWDM （100G/200G）

产品型号：1x2

技术支持：黄工 13427781756 (微信同号，可扫码）

由于产品的规格型号参数太多，所以页面上没有您要找的参数，并不代表我们没有相应的产品；添加微信，直接问吧这样更高效！

产品介绍

Specifications

Parameter		Value
Channel Center Wavelength(nm)		100G ITU Grid Channel	200G ITU Grid Channel
Operating Wavelength Range (nm)		1500~1640
Channel space (nm)		0.8	1.6
Channel bandwidth (nm)		≥0.22	≥0.50
Center Wavelength Accuracy @ 23℃ (nm)		±0.05nm
Insertion Loss for pass channel(dB)		≤0.80
Insertion Loss for reflect channel(dB)		≤0.40
PDL (dB)		≤0.10
Isolation (dB)	Pass Channel @Adjacent channel	≥30
	Pass Channel @Non-adjacent channel	≥40
	Reflect Channel@ Pass band	≥12
Directivity (dB)		≥50
Return loss (dB)		≥45
Wavelength thermal stability (nm/℃)		≤0.002
Insertion loss thermal stability (dB/℃)		≤0.003
Power handling (mW)		≤500
Fiber Type		SMF-28e
Operating temperature (℃)		0~+70
Storage temperature (℃)		40~+85
Dimensions (mm)		φ5.5L35 (P1) ,φ4.0L≤30(P2)，90209.5(P3), φ3.2*26mm(P4)

▲ Above specifications are for devices without the connectors.

▲ For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower.

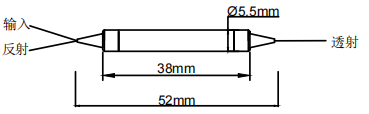

Package Dimensions

Ordering Information

DWDM	Spacing	Channel	000	Pigtail Type	Pigtail Type	Length	Connector
	1=100G 2=200G	C01 C02 C03 . . .	000	1=P1(5.535) 2=P2(4.0≤30) 3=P3(90209.5) 4=P4(3.2*26mmglass tube)	1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube S=Specify	H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m S=Specify	0=NoncI 1=FC/UPC 2=FC/APC 3=SC/APC 4=SC/UPC 5=NU 6=LC/UPC 7=LC/APC S=Specify
